Product Overview

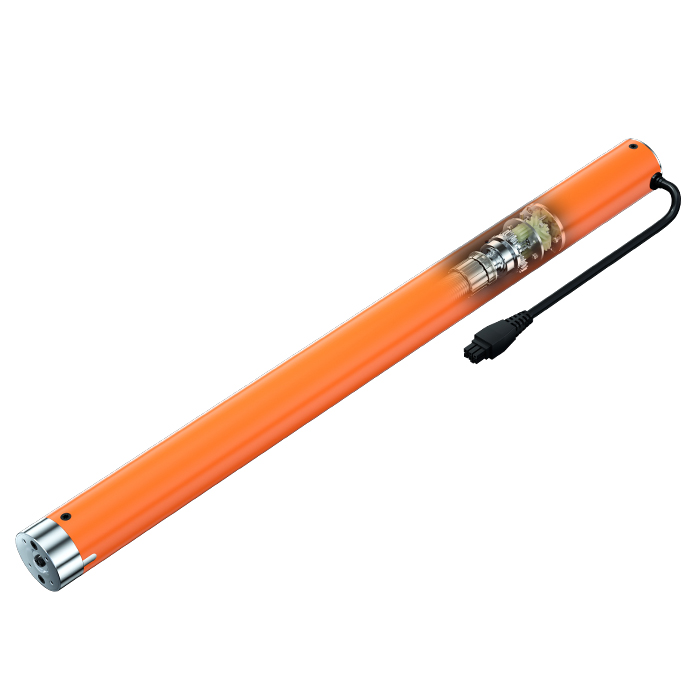

Star Lock Actuator

Model Number: SQ-P2835D24-A

Transmission Method: Worm Gear + Planetary Gearbox

Maximum Load: 600N (Push)

Maximum Speed at Full Load: 25mm/s

Maximum Speed at No Load: 30mm/s

Installation Size: ≥ Stroke + 590mm

Stroke: 600mm

Signal Output: Hall Sensors x 2

Voltage: DC 24V

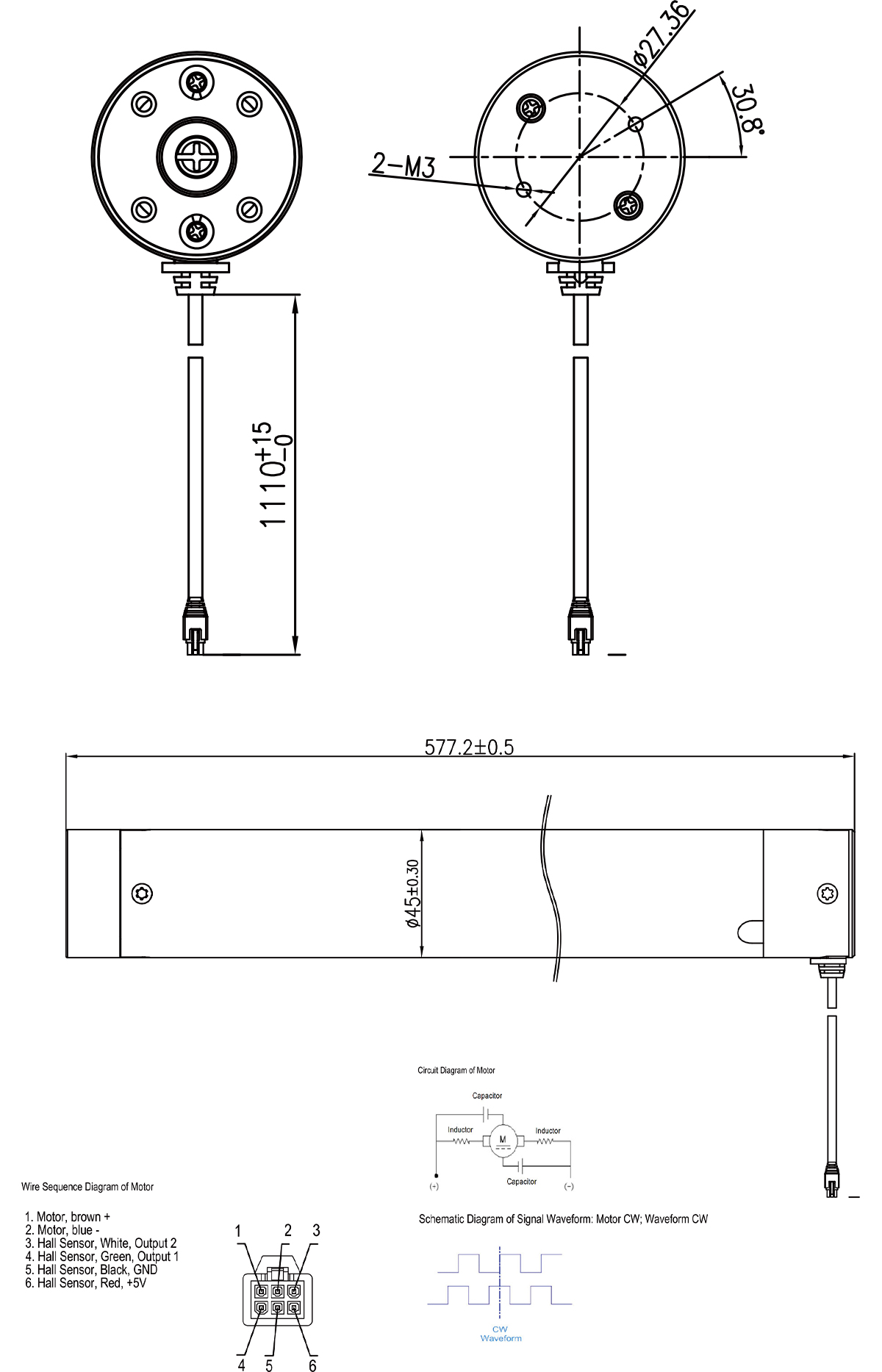

Dimensions: φ45 x L 590mm
